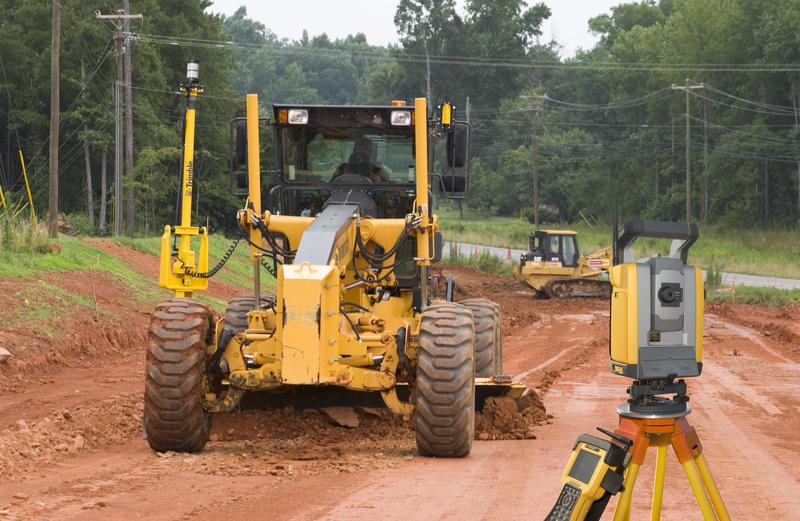

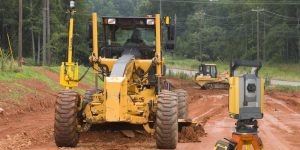

2D Grader

GCS900 2D for motor graders grading.

Grading

• Measure the lift and tilt of the blade with a single laser and laser receiver
• Measure the slope of the blade by adding another laser receiver or a slope sensor
• Get to grade more accurately and quickly with in-cab elevation and slope guidance
• Upgrade to a 3D grade control system as your organization grows

Finished grade

• Achieve tight tolerances and a smooth finished grade with precise vertical guidance.
• Calculate the cross-slope of the blade using two angle sensors and a rotation sensor
• Add a laser receiver or a sonic tracer to measure elevation
• Trace stringline, previous pass, or curb and gutter with a sonic tracer

Using the 2D system with a sonic sensor or a grade laser to improve the efficiency and productivity of your motor grader on projects such as:

• Road and highway projects
• Land reclamation projects
• Dam and reservoir construction
• New infrastructure projects

Cross-slope only

• Cross-slope control system to be used on motor graders for fine grading work for road maintenance, ditches and slope work

Single elevation plus cross-slope

• Single control system uses a laser or sonic receiver to control the lift of the machine blade for flat, slopework and finished grading

Dual elevation

• Dual control system that uses two laser or sonic receivers for higher accuracy lift control. Blade edge can be controlled independently or linke
